IM-1533

Español

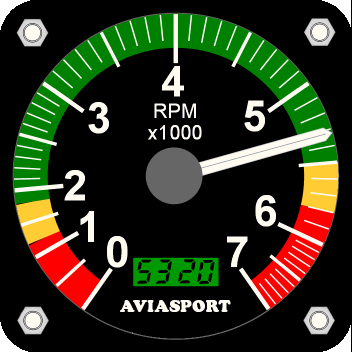

Tachometer for ROTAX 912/914
with Hourmeter
80mm Diameter ( 3-1/8 inch)



  • The IM-1533 instruments have been designed especially to measure the RPM in Rotax® engines 912 and 914.


  • The IM-1533 is available in 80 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous RPM monitorization.


  • The IM-1533 has a digital hourmeter. The hourmeter begin to count when the engine run over 1.800 rpm.


  • The display show the hours , minutes and seconds at less of 1800 rpm.


  • The display show the RPM at more of 1800 rpm.


  •  The display is Sunread


Technical data
Case Plastic
Weight 220g
Suitable for Rotax 912/914 Pick-up
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..7000 rpm
Subdivision scale 100 rpm each
Max. Deviation 1%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections
Dimensions


IM-1533
Part Number:IM-1533
Price = 105.00€ + VAT
