CHT
Gauges for ROTAX 582
Dual
52mm Diameter
Units ºF |
-

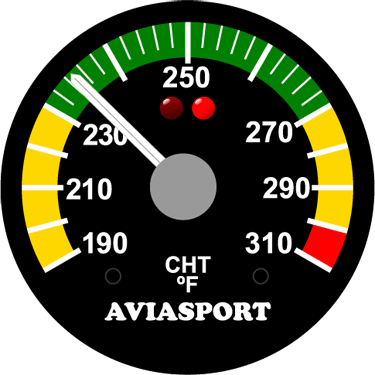

The IM-799 instruments have been
designed especially to measure the
Cylinder Heat Temperature (CHT) in Rotax®
engines 582.
-
The IM-799 is available in 52 mm
diameter.
-
You
can measure Two CHT cylinders.
Automatically cycle from one cylinder to
another. A Led show the cylinder that is
measure.
-
The instruments use a pointer thats
turns 240º, witch gives them great
resolution.
-
Thanks to embedded operational
amplifiers, this instrument has a high
accuracy, but needs a power supply of
12V or 24V.
|
|
 |
|
| Case |
Plastic |
| Weight |
220g |
| Suitable
for |
Type "J" Sender |
| Power
Supply |
10..30VDC |
| Power
Current |
0.1 Amp. Max. |
| Scale |
190..310º F |
|
Subdivision scale |
2ºF each |
| Max.
Deviation |
2% |
|
Dimensions |
See sketch |
|
Calibration |
Calibrated by the
manufacturer prior to shipment. |
|
|
|
|
|
|
|
 |
|
|
| |
|
Senders |
|
Two models are available:
Ref IM-921 -
Sender Type J length 2 meters
Ref IM-922 -
Sender Type J length 3 meters |
 |
|
|
| |
