CHT
Gauges for ROTAX 503
Dual
52mm Diameter
Units ºC |
-

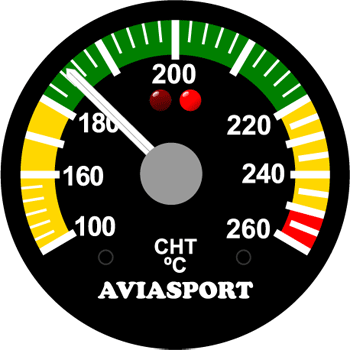

The IM-766
instruments have been designed especially to
measure the Cylinder Heat Temperature (CHT)
in Rotax® engines 503.
-
The IM-766
is available in 52 mm diameter.
-
You can
measure Two CHT cylinders. Automatically
cycle from one cylinder to another. A Led
show the cylinder that is measure.
-
The
instruments use a pointer thats turns 240º,
witch gives them great resolution.
-
Thanks to
embedded operational amplifiers, this
instrument has a high accuracy, but needs a
power supply of 12V or 24V.
|
|
 |
|
| Case |
Plastic |
| Weight |
220g |
| Suitable for |
Type "J" Sender |
| Power Supply |
10..30VDC |
| Power
Current |
0.1 Amp. Max. |
| Scale |
100..260º C |
| Subdivision
scale |
1ºC each |
| Max.
Deviation |
2% |
| Dimensions |
See sketch |
| Calibration |
Calibrated by the manufacturer
prior to shipment. |
|
|
|
|
|
|
|
 |
|
|
| |
|
Senders |
|
Two models are available:
Ref IM-921 - Sender
Type J length 2 meters
Ref IM-922 - Sender
Type J length 3 meters |
 |
|
|
| |
