IM-765

Español

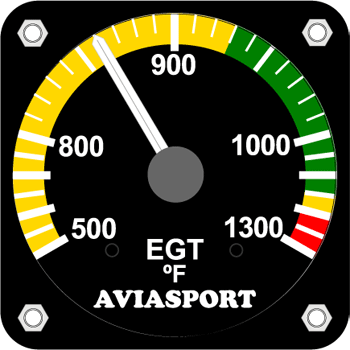

SINGLE EGT FOR ROTAX 582
57mm Diameter - ºF

  • The IM-765 instruments have been designed especially to measure the EGT in Rotax® engines 582.


  • The IM-765 is available in 57 mm diameter

  • With  a optional switch, you can measure the Temperature of two EGT.


  • The instruments use a pointer thats turns 240º, witch gives them great resolution.


  • Their display areas are divided  into red, green and yellow zones in line with the ROTAX limits.


  • Thanks to embedded operational amplifiers, this
     instrument has a high accuracy, but needs a power
     supply of 12V or 24V.


Technical data
Case Plastic
Weight 200g
Suitable for Rotax 582 With Type "K" sender
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 500..1300 ºF
Subdivision scale 10ºF
Max. Deviation 1%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections

Dimensions

Datasheet

Senders

IM-927 - Has a M8 thread and can be installed directly on the M8 nuts that come from the factory on 914 engines and some 912. In the exhaust without nuts, your need weld 4xM8 nuts. Stainless steel protection.  Wire length 2 meters.

IM-928 - Has a M8 thread and can be installed directly on the M8 nuts that come from the factory on 914 engines and some 912. In the exhaust without nuts, your need weld 4xM8 nuts. Stainless steel protection.  Wire length 3 meters.

M-929 -Probe type "K" Clamp type. Designed for 447/503/582 Rotax engines. No need weld nut, simply drill and tighten the clamp. Stainless steel protection. Wire length 2 meters.

IM-765
Part# IM-765
Usually in stock
Price = 75.00€
We sell instruments in the whole

We sell instruments in the whole world.
To calculate the shipping expenses, customs and VAT,
please send un email indicating your country at
roberto@aviasport.com
Soon we will answer the total quantity..
