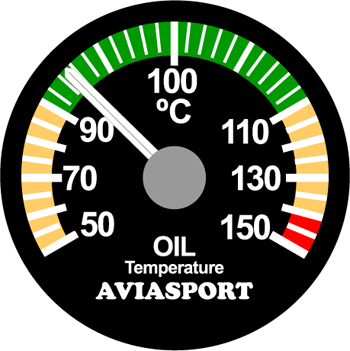

OIL
TEMPERATURE FOR ROTAX 912UL ºC
52mm Diameter |
-
The IM-559 instruments have
been designed especially to
measure the Oil Temperature in Rotax®
engines 912UL (80 HP).
-
The IM-527 is available
in 52 mm diameter.
-
The instruments have been designed to work with both
12V and 24V systems.
-
The minimum instrumentation requirements for
the
BRP_ROTAX® four stroke engines include a gauge for continuous
Oil Temperature monitorization.
|
 |
|
| Case |
Plastic |
| Weight |
200g |
| Suitable for |
Rotax 912UL |
| Power Supply |
10..30VDC |
| Power
Current |
0.1 Amp. Max. |
| Scale |
50..150 ºC |
| Subdivision
scale |
1ºC |
| Max.
Deviation |
2% |
| Dimensions |
See sketch |
| Calibration |
Calibrated by the manufacturer
prior to shipment. |
|
|
|
 |
|
|
 |
|
|
