IM-527

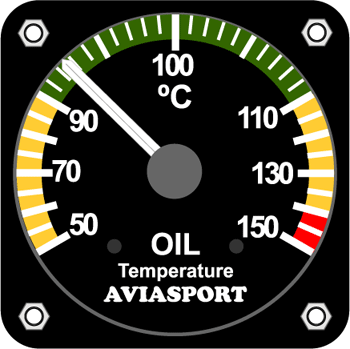

OIL TEMPERATURE FOR ROTAX 912UL ºC
57mm Diameter

  • The IM-527 instruments have been designed especially to measure the Oil Temperature in Rotax® engines 912UL (80 HP).


  • The IM-527 is available in 57 mm diameter.


  • The instruments have been designed to work with both 12V and 24V systems.


  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous Oil Temperature monitorization.


Technical data
Case Plastic
Weight 220g
Suitable for Rotax 912UL
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 50..150 ºC
Subdivision scale 1ºC
Max. Deviation 2%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections
Dimensions

Datasheet
