IM-1572

Español

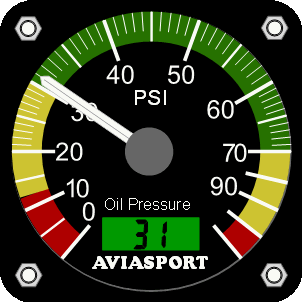

OIL PRESSURE FOR ROTAX 912/914 WITH VDO SENDER
Diameter: 57mm
Units : PSI
With LCD


  • The IM-1572 instruments have been designed especially to measure the Oil pressure in Rotax® engines 912/914 (Series).
  • The IM-1572 is available in 57 mm diameter.
  • The instruments have been designed to work with both 12V and 24V systems.
  • The minimum instrumentation requirements  for the BRP_ROTAX® four stroke engines include a gauge for continuous Oil Pressure monitorization.
  • The LCD show the pressure. The LCD is readable at direct sunlight.


Technical data
Case Plastic
Weight 120g
Suitable for Rotax 912/914
Power Supply 10..30VDC
Power Current  0.1 Amp. Max.
Scale 0..110 PSI
Subdivision scale 1 PSI
Max. Deviation 1%
Dimensions See sketch
Calibration Calibrated by the manufacturer prior to shipment.
Wire Connections
Dimensions


IM-1572
Part Number:IM-1572
Price = 80.00€ + VAT
