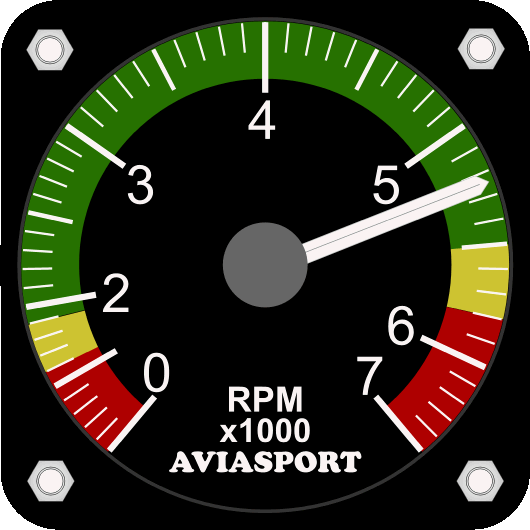

IM-1115

Tachometer 57mm

  • The IM-1115 is the new improved version of the IM-105 that has been on the market for 25 years.
  • The IM-1115 incorporates a stepper motor, which, in addition to greater precision, offers greater durability than the IM-105.
  • The IM-1115 instruments have been designed especially to measure the RPM in Rotax® engines 912 and 914.
  • The IM-1115 is available in 57 mm diameter.
  • They have been designed for ROTAX engines and their display areas are divided into red, green and yellow zones in line with Rotax limits.
  • The instruments use a pointer that turns 240º, which gives them great resolution.
  • The instruments have been designed to work with both 12V and 24V systems.

Technical data
Case Plastic
Weight 180 g.
Suitable for Rotax 912/914 Pick-up
Power Supply 10..30VDC
Power Current 0.15 Amp. Max.
Scale 0..7000 rpm
Subdivision scale 100 rpm each
Max. Deviation 1%
Calibration Calibrated by the manufacturer prior to shipment..
Wire Connections
Dimensions



IM-1115



Part Number: IM-1115
Price : 88.00€ + VAT
