IM-1114

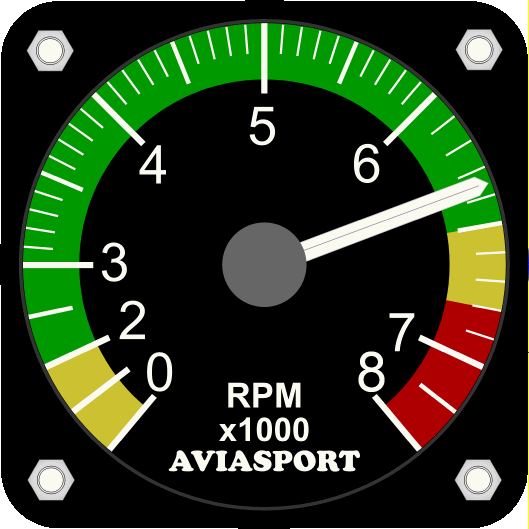

Tachometer 57mm

  • The IM-1114 is the new improved version of the IM-104 that has been on the market for 30 years.
  • The IM-1114 incorporates a stepper motor, which, in addition to greater precision, offers greater durability than the IM-104.
  • The IM-1104 instruments have been designed especially to measure the RPM in Rotax® engines 503 and 582 with Ducati ignition.
  • The IM-1104 is available in 57 mm diameter.
  • They have been designed for ROTAX engines and their display areas are divided into red, green and yellow zones in line with Rotax limits.
  • The instruments use a pointer that turns 320º, which gives them great resolution.
  • The IM-1104 need an 12V Power suply.

Technical data
Case Plastic
Weight 170 g.
Suitable for Two Strokes Rotax Engines with 12 Pole Ducati ignition unit
Power Supply 10..30VDC
Scale 0..8000 rpm
Subdivision scale 100 rpm each
Max. Deviation 1%
Calibration Calibrated by the manufacturer prior to shipment..
Wire Connections
Dimensions



IM-1114



Part Number: IM-1114
Price : 83.00€ + VAT
